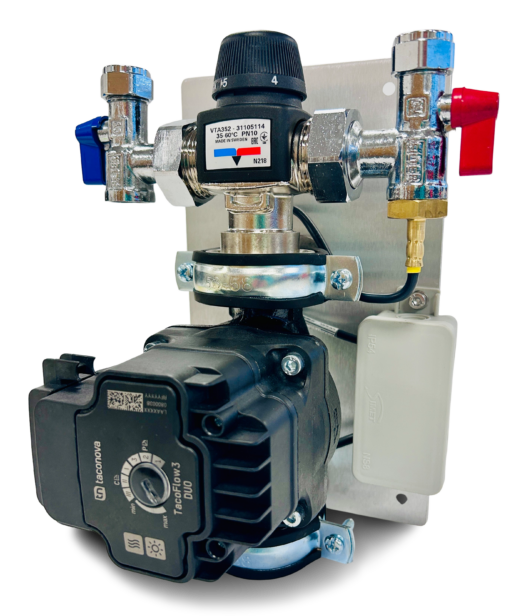

ESBE SL Pump Control Set

Single-loop underfloor heating with thermostatic mixing valve

Let’s talk, call us on 01489 779068

Valve Icon
OEM Icon
ESBE Icon
Energy Icon
OEM Icon

The ESBE SL thermostatic single-loop pump set is suitable for applications with a max output of 5kW.

Features

  • ‘A’ rated pump (Grundfos or Wilo)

  • Assembled in the UK: pre-tested, packaged and ready for instant installation

  • Wall mounting plate as standard

  • Fitted temperature switch (40°C standard)

  • In-built primary isolation valves

  • ESBE 35-60 UFH thermostatic mixing valve

  • In-built bypass

  • Pre-wired pump terminal box

  • 2 Year warranty

Specification

  • Kv: 1.6 (Up to 90sqm / 5kW)

  • Temperature range: 35°C – 60°C

  • Max temperature range:

    Continuously = 95°C / Temporarily = 100°C

  • Maximum supply pressure: 10 Bar

Connections

Primary connections – ½” BSPF
Manifold connections – ½” BSPF

Optional extras

Eurocone connection fittings







OEM Icon

Downloads

PDF Product Download OEM

Brochure

Overview of the Essco Underfloor Heating Pump Pack range. Click to download.

PDF Product Download OEM

ESBE SL Wilo Data Sheet

Technical data sheet for the ESBE SL Wilo control pack. Click to download.

PDF Product Download OEM

ESBE SL Grundfos Data Sheet

Technical data sheet for the ESBE SL Grundfos pump pack. Click to download.

PDF Product Download OEM

ESBE SL Wilo Installation Instructions

Installation Instructions for the ESBE SL Wilo Pump Pack. Click to download.

PDF Product Download OEM

ESBE SL Grundfos Installation Instructions

Installation Instructions for the ESBE SL Grundfos Pump Pack. Click to download.
