H4 Pump Control Set

For heat pump and low temperature systems

Let’s talk, call us on 01489 779068

Valve Icon
OEM Icon
ESBE Icon
Energy Icon
OEM Icon

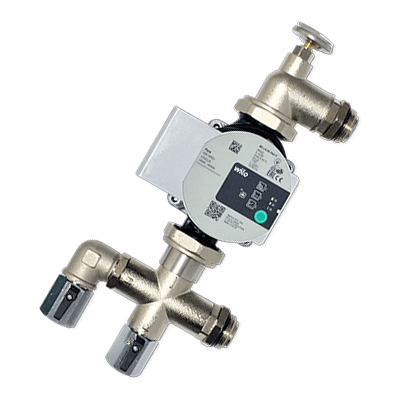

The compact H4 4-port pump set is suitable for applications with a max output of 20kW.

Features

  • ‘A’ rated pump (Grundfos or Wilo)

  • In-built 4-way deflector plate

  • Integrated check valves for easy filling

  • Temperature gauge

  • Assembled in the UK: pre-tested, packaged and ready for instant installation

  • 2 Year warranty

  • Fully reversible (Left or Right sided manifold)

  • Side or bottom entry connections

  • Available in 200mm, 210mm and 225mm manifold connection centers

Specification

  • Output: Up to 250sqm / 20kW

  • Max temperature range:

    Continuously = 95°C / Temporarily = 100°C

  • Maximum supply pressure: 10 Bar

Connections

Primary connections – 3/4” BSPF
Manifold connections – 1” BSPM



Optional extras

Primary isolation valves

Safety temperature switch

Manifold isolation valves

Compression fittings





OEM Icon

Downloads

PDF Product Download OEM

Brochure

Overview of the Essco Underfloor Heating Pump Pack range. Click to download.

PDF Product Download OEM

H4 Wilo Data Sheet

Technical data sheet for the H4 Wilo pump pack. Click to download.

PDF Product Download OEM

H4 Grundfos Data Sheet

Technical data sheet for the H4 Grundfos pump pack. Click to download.

PDF Product Download OEM

H4 Wilo Installation Instructions

Installation Instructions for H4 Wilo Pump Pack. Click to download.

PDF Product Download OEM

H4 Grundfos Installation Instructions

Installation Instructions for the H4 Grundfos Pump Pack. Click to download.
