OVERVIEW OF RANGE
Our range of accessories for heat pump systems is designed to keep installations efficient, protected and simple to manage.
From diverting, mixing and balancing valves to freeze protection, each component plays a critical role in ensuring reliable performance throughout the heating season.
Our heat pump system accessories include the following –
- Anti-freeze valves for protection
- Diverter valve packages for higher flow rates
- Secondary mixing valves and actuators
- Circulation units and manifolds with lower loss headers
- Balancing valves
- Circulation pumps up to 8M with optional PWM control
- Two-way high flow zone valves
PRODUCTS ARE AVAILABLE TO PURCHASE FROM YOUR PREFERRED PLUMBING MERCHANT.
ESBE Series VTN100 Anti-Freeze Valves
- Provides protection from potential damage during freezing weather
- Media temperature range: 0-90°C
- Opening temperature: 3°C
- Max. discharge flow: 2 l/min @3 bar dP
- Exact temperature regulation
- Robust
- Maintenance free

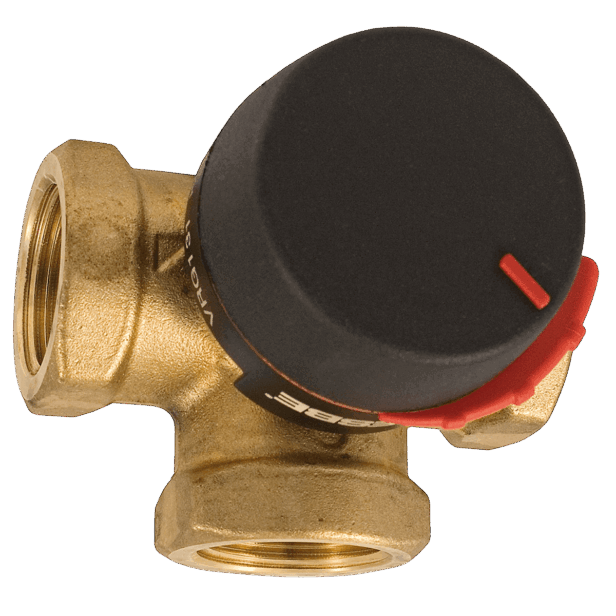

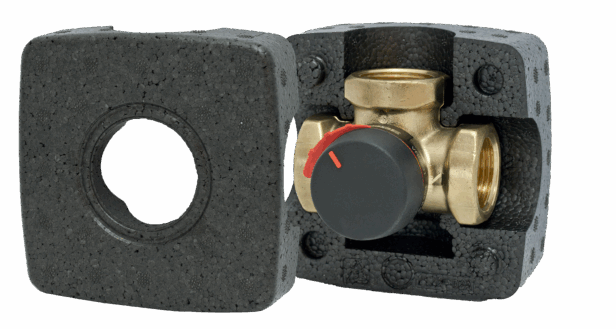

ESBE VRG131 Mixing / Diverting Valves
- Ideal for heat pump applications
- Designed for high flow rates with low delta T
- Brass construction suitable for heating and cooling applications
- Connections to suit all pipe dimensions, each with multiple KVS options
- Up to 10 bar (PN10) operating pressure
- Wide range of sizes from DN15 to DN50
- Compact, flexible and easy to install
- Perfect match with ESBE series ARA600 actuator
Need help choosing the right components for your next project?
ESBE Series VRG231 Diverting Valves
- Ideal for heat pump applications
- Designed for high flow rates with low delta T
- Brass construction suitable for heating and cooling applications
- Connections to suit all pipe dimensions, each with multiple KVS options
- Up to 10 bar (PN10) operating pressure
- Wide range of sizes from DN15 to DN50
- Compact, flexible and easy to install
- Perfect match with ESBE series ARA600 actuator
ESBE Series ARA600 2-Point Actuators
- For use with ESBE VRG 131 & 231 rotary mixing/diverting valves
- Compact, reliable, and robust
- Operating range of 90°
- Inbuilt relay for use with on/off thermostat
- Can be used for both 2-point and 3-point control signal
- Manual operation available using a pull-and-turn knob on the front cover
ESBE Series MBA130 3-Port Diverting Zone Valves
- DN25 and DN32 external thread screwed BSP
- Nickel plated brass ball valve
- Suitable for high flow rates
- 100% leak-tight
- Auxiliary switch included
- Complete with 2-Point control 230v (on/off)
- Max pressure: 32 Bar
- Running Speed: 40 Seconds
ESBE Series GRA200 Circulation Units
- 3-point / Modulating circulation unit for heating circuits
- Controlled by Building Management System (BMS)
- Outstanding flow control thanks to the progressive characteristic of the valve
- 3-way rotary progressive mixing valve and actuator
- Ready to use with most standard controllers
- One-size-fits-all (auto adapt + progressive characteristic)
ESBE Series GDA200 & GDA300 Circulation Units
- Direct supply circulation unit suited to domestic hot water applications
- High efficiency circulation pump
- Pre-tested and ready to use
- One-size-fits-all – auto adapt function on board

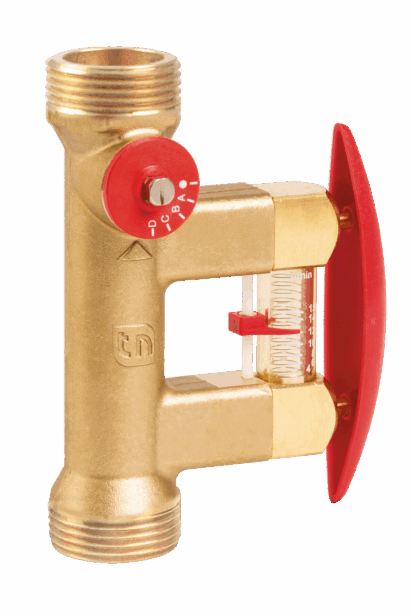

Taconova TacoSetter Balancing Valves
- Compact balancing valves for heating circuits
- Accurate control of flow rates from 0.3 to 650l/min
- PN10 pressure rating
- TacoSetter Inline 100 +/- 10% BSRIA accuracy tested
- TacoSetter SD 100 +/- 5% BSRIA accuracy tested
- Manufactured in EU
- Easy read display
- Ideal for heat pump applications
- Maintenance free
- Available with external and compression thread

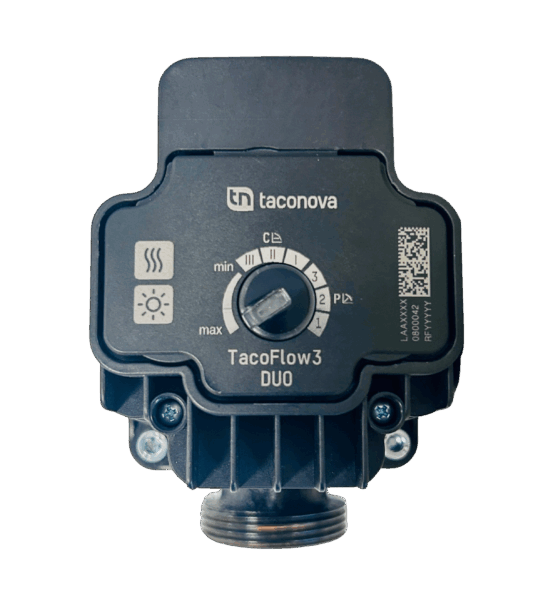

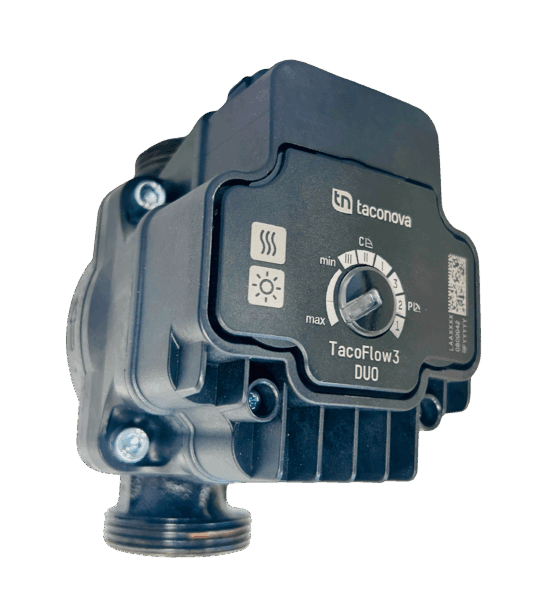

Taconova Circulating Pumps
- 5 year warranty for peace of mind
- EEI (energy efficiency index) provides low running costs and reduced emissions
- Anti-blocking feature reduces unnecessary callouts
- Venting function automatically releases air out of the system to assist with commissioning
- LEDs for clear fault diagnosis
- DN25 and DN15 (130mm) for quick replacement
- Ideal for heating and solar applications
- 8M head pressure
- PWM enabled
- Manufactured in the EU
Essco Motorised 2-way Ball Valves
- DN15 to DN50 internal thread screwed BSP
- Nickel plated brass ball valve
- 100% leak-tight
- Complete with 2-Point control 230v or 24v AC
- Features electric actuator with output switch
- Max pressure: 10 Bar
- Actuator rating: IP54
- Temperature range: -20°C to 70°C
- Running Speed: 60 Seconds
- Torque: 13Nm
- Equal percentage flow control
- Position indicator
- Manual operation via unlock button
Contact our friendly technical team for product selection and advice.
